Precision line preamplifier delivering transparent, distortion-free amplification for discerning audiophiles.
Technical Details
Name: Orca
Class Of Operation: Class A
Input Stage: J-Fet
Input Impedance: 47 Kohms
Output Impedance: 300 ohms

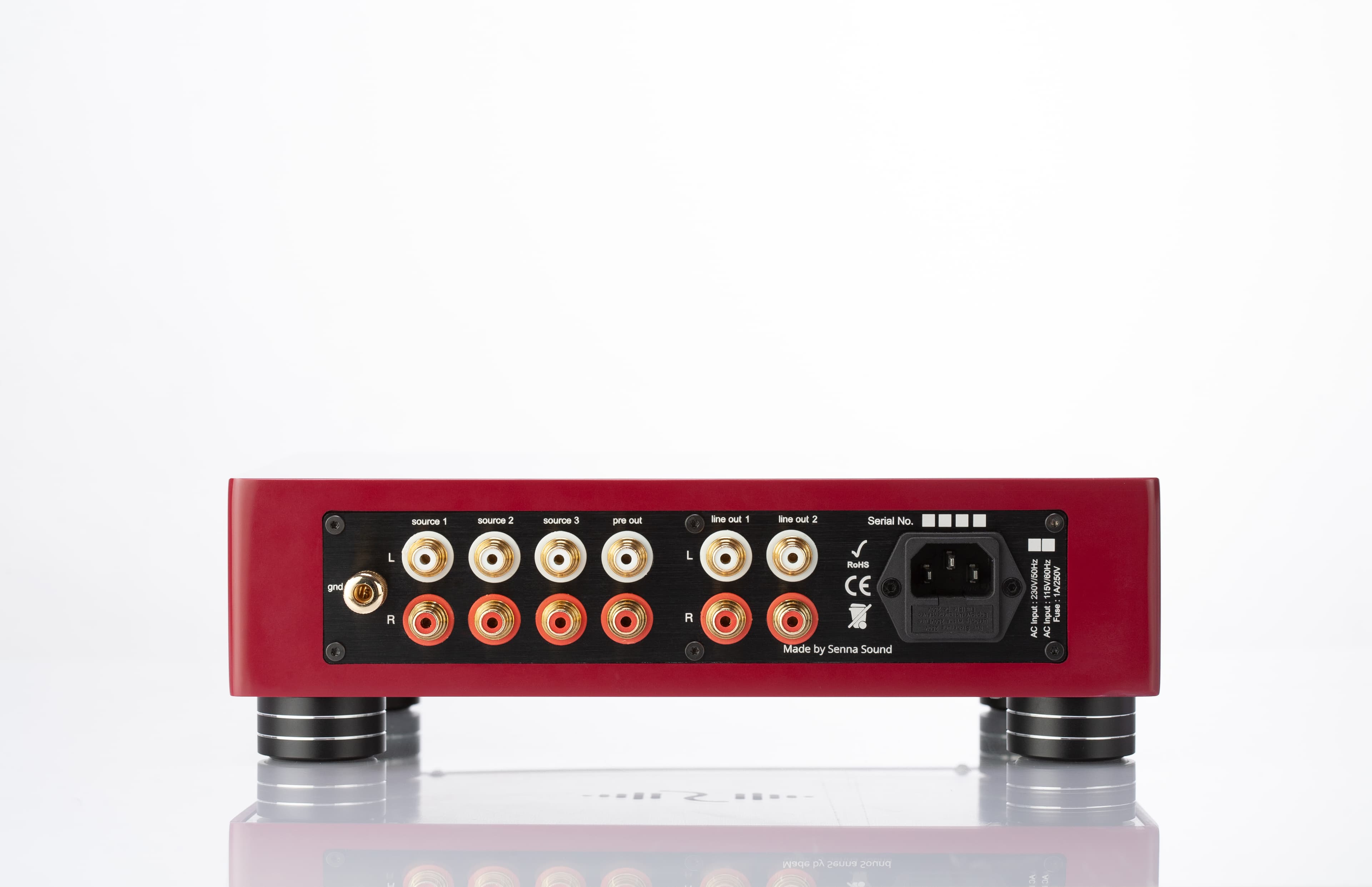

Inputs: 3x RCA
Outputs: RCA Line out x 2 (300 ohms output impedance), Preout – volume controlled, no gain
Gain: 17dB
Thd: 0.3% (1 KHz / 4Vef)
Snr: 95dB
Frequency Bandwidth: 5Hz (-1dB) – 250kHz (-3dB)
Input Voltage: 230V/50Hz or 115V/60Hz or by request
Power Consumption: 20W
Remote Control: Controlled volume control
Size: 280 x 200 x 85 mm
Weight: 6kg
Designed with intuitive controls and clear labeling, this product offers a seamless user experience. Whether you're an audiophile or just beginning your high-fidelity journey, you'll find it easy to achieve optimal performance.
